Mul-T-Lock Cylinder Face

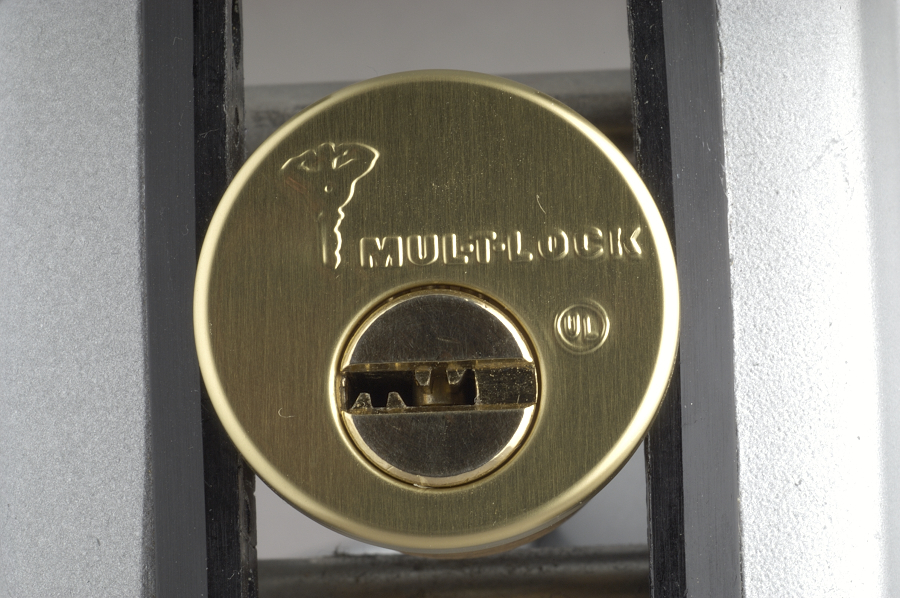

Mul-T-Lock Cylinder face. Mul-T-Lock keyways are are oriented horizontally in the plug. Keys are double sided as a user convenience and can be inserted either way, although only the top of the key actually interacts with the pins. Note the front-most pin visible under the two right wards (at the center of the plug).

Image taken with a Nikon D-100 digital camera with a Nikkor 85mm 1:2.8D tilt/shift macro lens (with Kenko extension tube). Lit by electronic flash and various reflectors.
